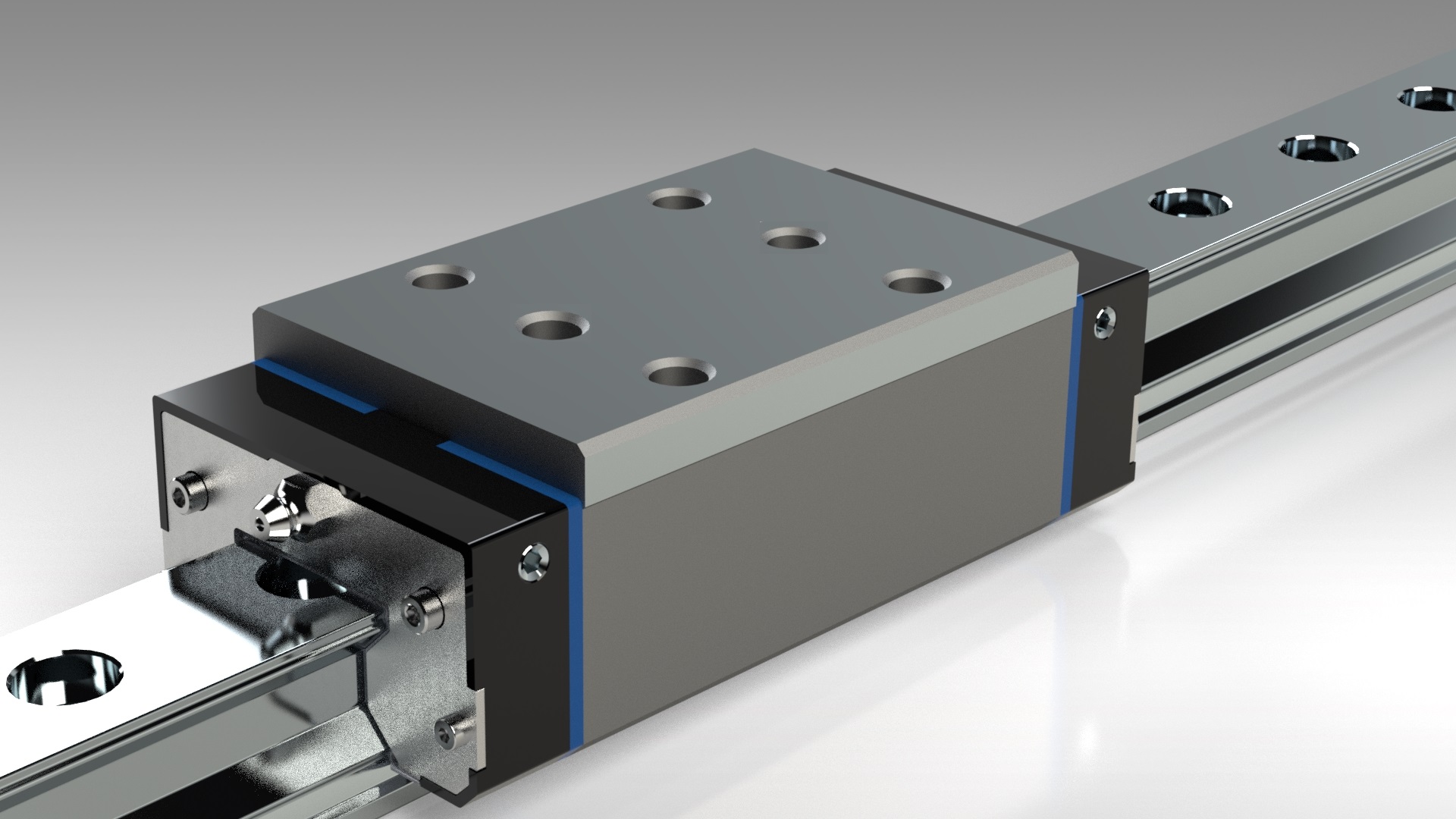

The roller carriage is narrow, long, and high
Technical specifications
Speed up to:
4 m/s
Acceleration to:
150 m/s2
Tension:
С2-С4
Accuracy:
H-UP
Standard sizes:
25, 30, 35, 45, 55
Code:
V241
The manufacturer reserves the right to make design and specification changes. To place an order, specify the carriage and linear guide part numbers according to the order number.
Order numbers of carriages V241
| Standard size | Accuracy class | Order numbers of carriages | ||
|---|---|---|---|---|
| С2 | С3 | С4 | ||
| 25 | H (3) | V241.250.320 | ||
| P (2) | V241.250.220 | V241.250.230 | ||
| SP (1) | V241.250.120 | V241.250.130 | V241.250.140 | |
| UP (0) | V241.250.020 | V241.250.030 | V241.250.040 | |
| 30 | H (3) | V241.300.320 | ||
| P (2) | V241.300.220 | V241.300.230 | ||
| SP (1) | V241.300.120 | V241.300.130 | V241.300.140 | |
| UP (0) | V241.300.020 | V241.300.030 | V241.300.040 | |
| 35 | H (3) | V241.350.320 | ||
| P (2) | V241.350.220 | V241.350.230 | ||
| SP (1) | V241.350.120 | V241.350.130 | V241.350.140 | |
| UP (0) | V241.350.020 | V241.350.030 | V241.350.040 | |
| 45 | H (3) | V241.450.320 | ||
| P (2) | V241.450.220 | V241.450.230 | ||
| SP (1) | V241.450.120 | V241.450.130 | V241.450.140 | |
| UP (0) | V241.450.020 | V241.450.030 | V241.450.040 | |
| 55 | H (3) | V241.550.320 | ||
| P (2) | V241.550.220 | V241.550.230 | ||
| SP (1) | V241.550.120 | V241.550.130 | V241.550.140 | |
| UP (0) | V241.550.020 | V241.550.030 | V241.550.040 | |

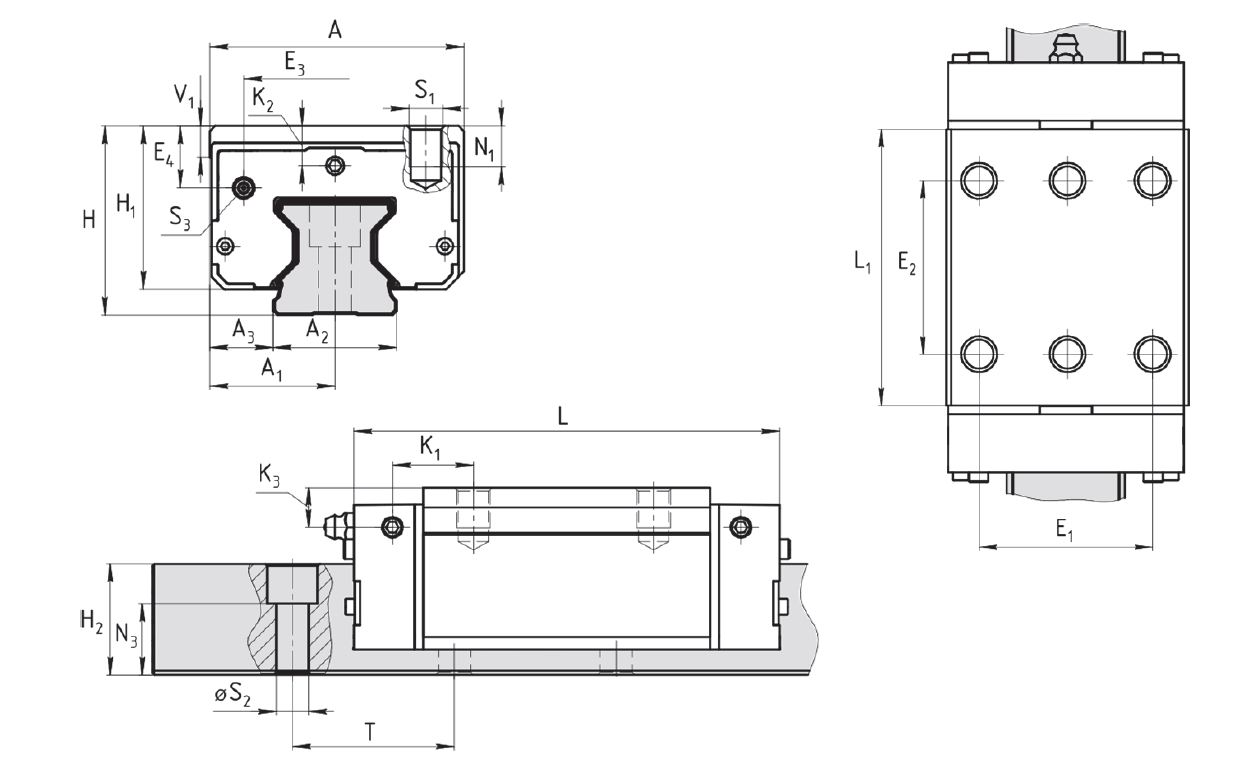

V241 carriage dimensions
| Standard size | Dimensions (mm) | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| А | А1 | А2 | А3 | L | L1 | E1 | E2 | E3 | E4 | H | H1 | H21 | H22 | K1 | K2 | K3 | N1 | N3 | S1 | S2 | S3 | T | V1 | |
| 25 | 48 | 24 | 23 | 12 | 115 | 81,5 | 35 | 50 | 33,4 | 12,3 | 40 | 34 | 23,6 | 23,4 | — | 5,5 | 5,5 | 8 | 14,7 | М6 | 7 | M3-6,5 | 30 | 7,5 |
| 30 | 60 | 30 | 28 | 16 | 130,9 | 95,5 | 40 | 60 | 43 | 15 | 45 | 39,6 | 28 | 27,8 | 26,63 | 6 | 6 | 12 | 16,8 | М8 | 9 | M3-5 | 40 | 7,8 |
| 35 | 70 | 35 | 34 | 18 | 142 | 103,6 | 50 | 72 | 50,3 | 20,1 | 55 | 48 | 31,1 | 30,8 | 24,4 | 7 | 7 | 12 | 19,8 | М8 | 9 | M3-6 | 40 | 8 |
| 45 | 86 | 43 | 45 | 20,5 | 179,5 | 134 | 60 | 80 | 62,9 | 26,7 | 70 | 61 | 39,1 | 38,8 | 36,6 | 8 | 8 | 18 | 22,8 | М10 | 14 | M4-9 | 52,5 | 10 |
| 55 | 100 | 50 | 53 | 23,5 | 209,65 | 162,1 | 75 | 95 | 74,2 | 28,85 | 80 | 68 | 47,85 | 47,55 | 44,4 | 9 | 9 | 17 | 28,7 | М12 | 16 | M5-8 | 60 | 12 |
Note:
1. Size H2 – with protective tape
2. Size H2 – without protective tape
3. The recommended threaded length of fittings for sizes 15-20 is 5 mm; for sizes 25-65 — 8 mm
Additional options
| Standard size | Weight (kg) | Permissible dynamic and static loads (N) | Permissible torques*** (Nm) | ||||
|---|---|---|---|---|---|---|---|
| C | C0 | Mt | Mt0 | ML | ML0 | ||
| 25 | 0,8 | 35580 | 75230 | 460 | 980 | 450 | 960 |
| 30 | 1,37 | 56480 | 123,33 | 960 | 2090 | 830 | 1800 |
| 35 | 2,35 | 66990 | 139320 | 1330 | 2760 | 1090 | 2260 |
| 45 | 4,45 | 116060 | 241480 | 2840 | 5920 | 2330 | 4850 |
| 55 | 6,55 | 166600 | 338540 | 4890 | 9950 | 4250 | 8652 |
