H30S with reinforced damped stainless steel end stops
Technical specifications
Length to:
1200
Progress to:
1217
Weight kg/m:
3,5
Standard size:
30
Code:
H-S
The manufacturer reserves the right to make design and specification changes.

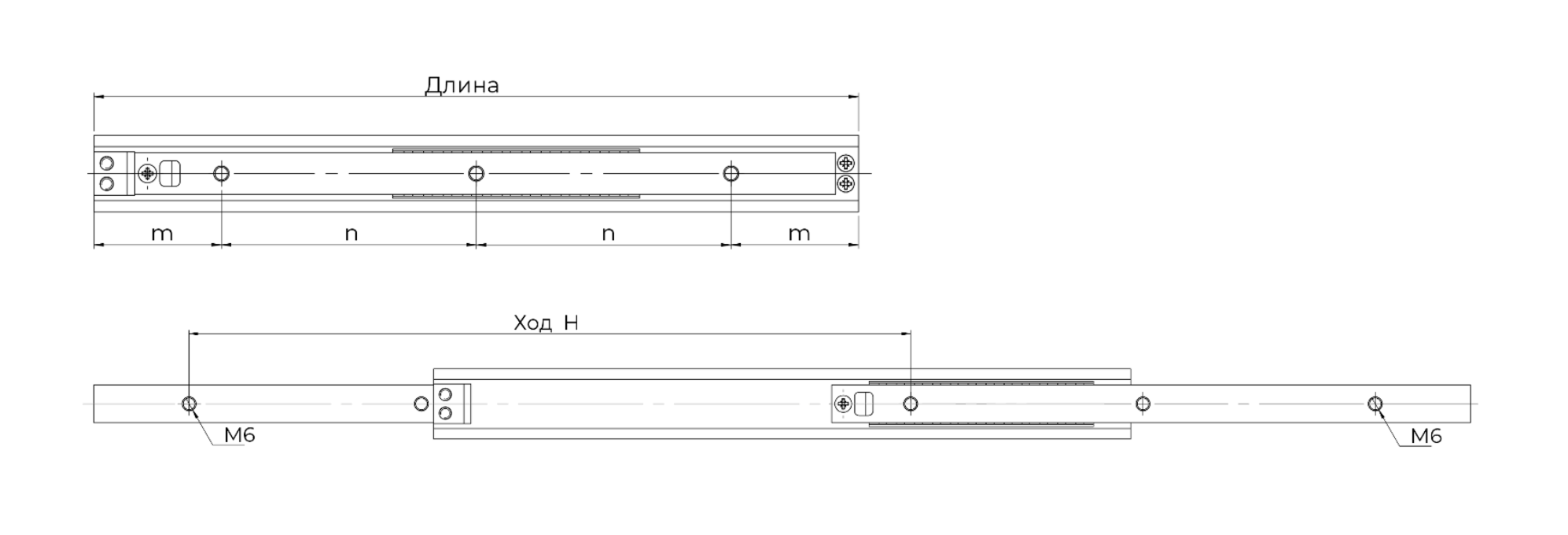

Dimensions H30S
| Type | Size | Length L [mm] |
Stroke H [mm] |
Load Capacity for Pair of Rails | m | n | Number of holes |
|
|---|---|---|---|---|---|---|---|---|
| C0rad [N] | C0ax [N] | |||||||
| H-S | 30 | 300 | 310 | 816 | on request | 50 | 100 | 3 |
| 350 | 364 | 880 | 75 | 3 | ||||
| 400 | 402 | 994 | 50 | 4 | ||||
| 450 | 472 | 1032 | 75 | 4 | ||||
| 500 | 510 | 1330 | 50 | 5 | ||||
| 550 | 564 | 1498 | 75 | 5 | ||||
| 600 | 618 | 1392 | 50 | 6 | ||||
| 650 | 671 | 1276 | 75 | 6 | ||||
| 700 | 725 | 1178 | 50 | 7 | ||||
| 750 | 764 | 1138 | 75 | 7 | ||||
| 800 | 817 | 1060 | 50 | 8 | ||||
| 850 | 871 | 992 | 75 | 8 | ||||
| 900 | 925 | 932 | 50 | 9 | ||||
| 950 | 979 | 878 | 75 | 9 | ||||
| 1000 | 1017 | 856 | 50 | 10 | ||||
| 1050 | 1071 | 810 | 75 | 10 | ||||
| 1100 | 1109 | 790 | 50 | 11 | ||||
| 1150 | 1179 | 732 | 75 | 11 | ||||
| 1200 | 1217 | 718 | 50 | 12 | ||||

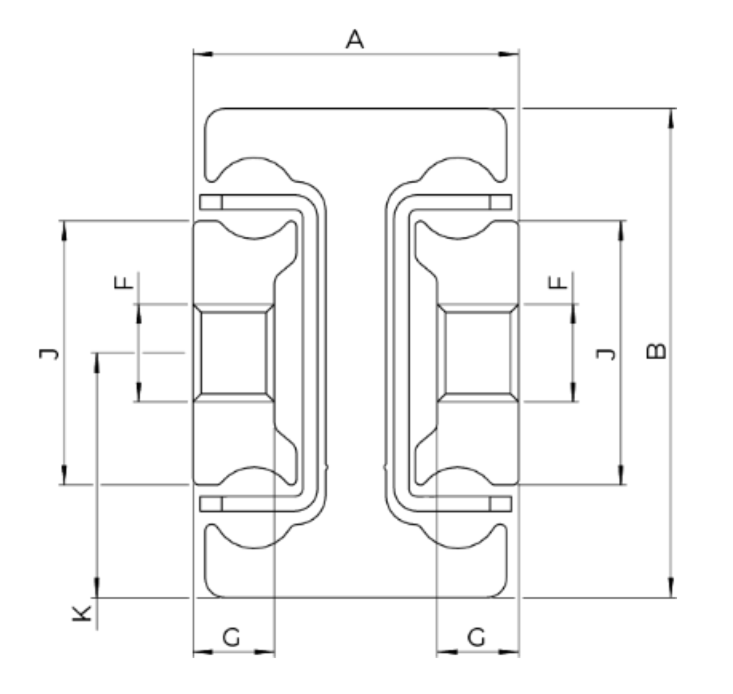

| Type | Size | A | B | J | G | K | F | Weight of One Guide Rail [kg/m] |
|---|---|---|---|---|---|---|---|---|
| H | 30 | 20 | 30 | 16.2 | 5.0 | 15.0 | M6 | 3.5 |
| 45 | 26 | 45 | 25.5 | 6.1 | 22.5 | M8 | 6.0 |
