H30V variable pitch of mounting holes
Technical specifications
Length to:
1200
Progress to:
1215
Weight kg/m:
3,5
Standard size:
30
Code:
H-V
The manufacturer reserves the right to make design and specification changes.

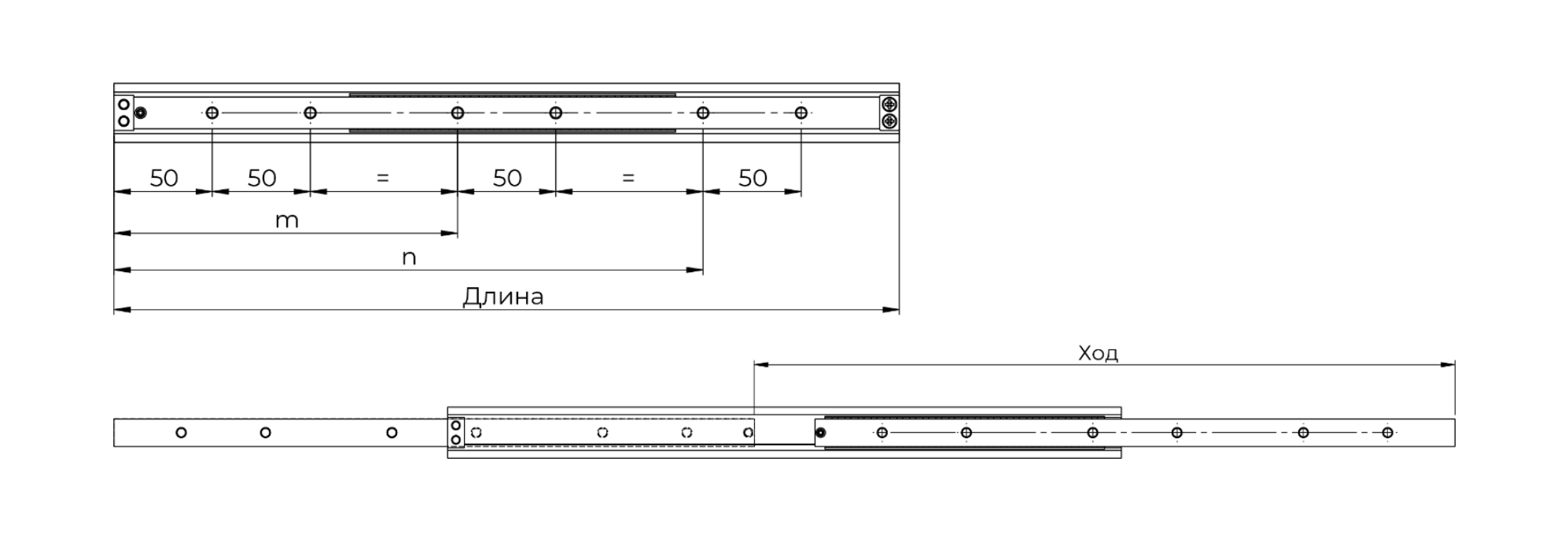

Dimensions H30V
| Type | Size | Length L [mm] |
Stroke H [mm] |
Load Capacity for Pair of Rails | m | n | Number of holes |
|
|---|---|---|---|---|---|---|---|---|
| C0rad [N] | C0ax [N] | |||||||
| H-V | 30 | 250 | 285 | 404 | on request | — | 150 | 4 |
| 300 | 323 | 1008 | 200 | |||||
| 350 | 377 | 1042 | 250 | |||||
| 400 | 416 | 1136 | 175 | 300 | 6 | |||
| 450 | 485 | 1164 | 200 | 350 | ||||
| 500 | 523 | 1470 | 225 | 400 | ||||
| 550 | 577 | 1464 | 250 | 450 | ||||
| 600 | 615 | 1402 | 275 | 500 | ||||
| 650 | 685 | 1230 | 300 | 550 | ||||
| 700 | 723 | 1186 | 325 | 600 | ||||
| 750 | 777 | 1100 | 350 | 650 | ||||
| 800 | 815 | 1066 | 375 | 700 | ||||
| 850 | 884 | 962 | 400 | 750 | ||||
| 900 | 923 | 936 | 425 | 800 | ||||
| 950 | 977 | 882 | 450 | 850 | ||||
| 1000 | 1015 | 858 | 475 | 900 | ||||
| 1050 | 1084 | 792 | 500 | 950 | ||||
| 1100 | 1123 | 772 | 525 | 1000 | ||||
| 1150 | 1176 | 736 | 550 | 1050 | ||||
| 1200 | 1215 | 720 | 575 | 1100 | ||||
| Type | Size | A | B | J | G | K | F | Weight of One Guide Rail [kg/m] |
|---|---|---|---|---|---|---|---|---|
| H | 30 | 20 | 30 | 16.2 | 5.0 | 15.0 | M6 | 3.5 |
| 45 | 26 | 45 | 25.5 | 6.1 | 22.5 | M8 | 6.0 |
