H45F fixed pitch of mounting holes
Technical specifications
Length to:
1500
Progress to:
1522
Weight kg/m:
6
Standard size:
45
Code:
H-F
The manufacturer reserves the right to make design and specification changes.

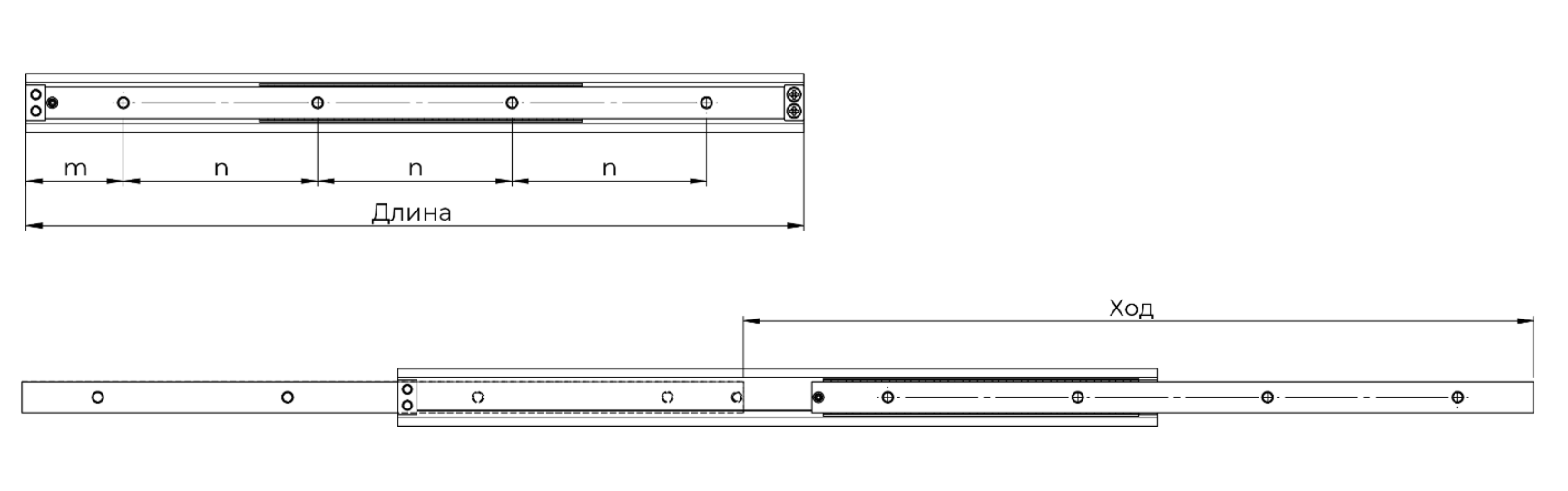

Dimensions H45F
| Type | Size | Length L [mm] |
Stroke H [mm] |
Load Capacity for Pair of Rails | m | n | Number of holes |
|
|---|---|---|---|---|---|---|---|---|
| C0rad [N] | C0ax [N] | |||||||
| H-F | 45 | 250 | 276 | 2610 | on request | 25 | 100 | 3 |
| 300 | 310 | 2824 | 50 | |||||
| 350 | 388 | 2820 | 25 | 4 | ||||
| 400 | 422 | 2842 | 50 | 4 | ||||
| 450 | 478 | 2864 | 25 | 5 | ||||
| 500 | 512 | 2900 | 50 | 5 | ||||
| 550 | 590 | 2764 | 25 | 6 | ||||
| 600 | 624 | 3032 | 50 | 6 | ||||
| 650 | 680 | 3252 | 25 | 7 | ||||
| 700 | 714 | 3346 | 50 | 7 | ||||
| 750 | 770 | 3084 | 25 | 8 | ||||
| 800 | 826 | 2860 | 50 | 8 | ||||
| 850 | 882 | 2666 | 25 | 9 | ||||
| 900 | 916 | 2614 | 50 | 9 | ||||
| 950 | 972 | 2450 | 25 | |||||
| 1000 | 1028 | 2306 | 50 | 10 | ||||
| 1050 | 1084 | 2178 | 25 | |||||
| 1100 | 1118 | 2144 | 50 | 11 | ||||
| 1150 | 1174 | 2034 | 25 | |||||
| 1200 | 1230 | 1934 | 50 | 12 | ||||
| 1250 | 1286 | 1842 | 25 | 13 | ||||
| 1300 | 1320 | 1818 | 50 | |||||
| 1350 | 1376 | 1738 | 25 | 14 | ||||
| 1400 | 1410 | 1716 | 50 | |||||
| 1450 | 1488 | 1596 | 25 | 15 | ||||
| 1500 | 1522 | 1578 | 50 | |||||
| Type | Size | A | B | J | G | K | F | Weight of One Guide Rail [kg/m] |
|---|---|---|---|---|---|---|---|---|
| H | 30 | 20 | 30 | 16.2 | 5.0 | 15.0 | M6 | 3.5 |
| 45 | 26 | 45 | 25.5 | 6.1 | 22.5 | M8 | 6.0 |
