S1-28
Technical specifications
Length to:
1490
Progress to:
1518
Weight up to:
9,5
Standard size:
28
Code:
S1
The manufacturer reserves the right to make design and specification changes.

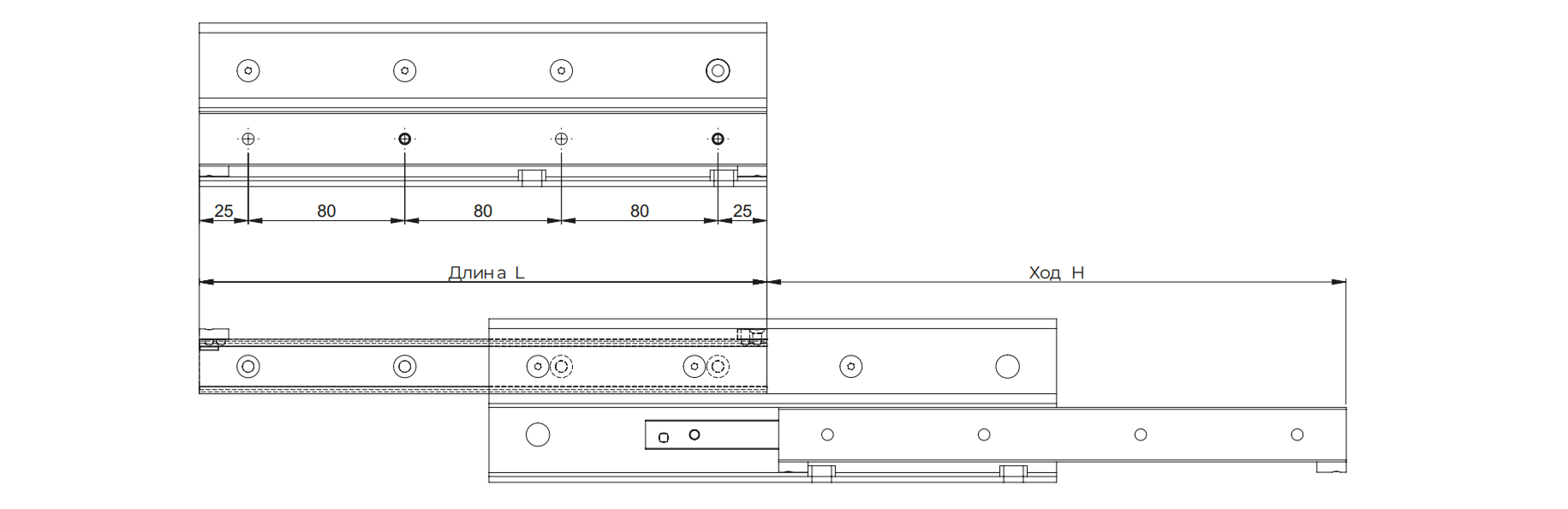

Dimensions S1-28
| Type | Size | Length L [mm] | Stroke H [mm] | Load Capacity for Pair of Rails C0rad [N] |
Number of holes |
Weight of One Guide Rail (kg) |
|---|---|---|---|---|---|---|
| S1 | 28 | 290 | 296 | 1140 | 3 / 4 | 1.9 |
| 370 | 380 | 1538 | 4 / 5 | 2.4 | ||
| 450 | 464 | 1938 | 4 / 6 | 2.9 | ||
| 530 | 548 | 2340 | 6 / 7 | 3.4 | ||
| 610 | 630 | 2752 | 6 / 8 | 3.9 | ||
| 690 | 714 | 3154 | 7 / 9 | 4.4 | ||
| 770 | 798 | 3556 | 7 / 10 | 4.9 | ||
| 850 | 864 | 4222 | 9 / 11 | 5.4 | ||
| 930 | 950 | 4480 | 9 / 12 | 6.0 | ||
| 1010 | 1034 | 4108 | 10 / 13 | 6.5 | ||
| 1090 | 1118 | 3792 | 10 / 14 | 7.0 | ||
| 1170 | 1202 | 3522 | 12 / 15 | 7.5 | ||
| 1250 | 1266 | 3390 | 12 / 16 | 8.0 | ||
| 1330 | 1350 | 3172 | 13 / 17 | 8.5 | ||
| 1410 | 1434 | 2980 | 13 / 18 | 9.0 | ||
| 1490 | 1518 | 2810 | 15 / 19 | 9.5 |
Note:
The load capacity of the C₀Rad is indicated for a pair of telescopic rails. To calculate the load capacity for one guide rail, divide the value from the table by 2

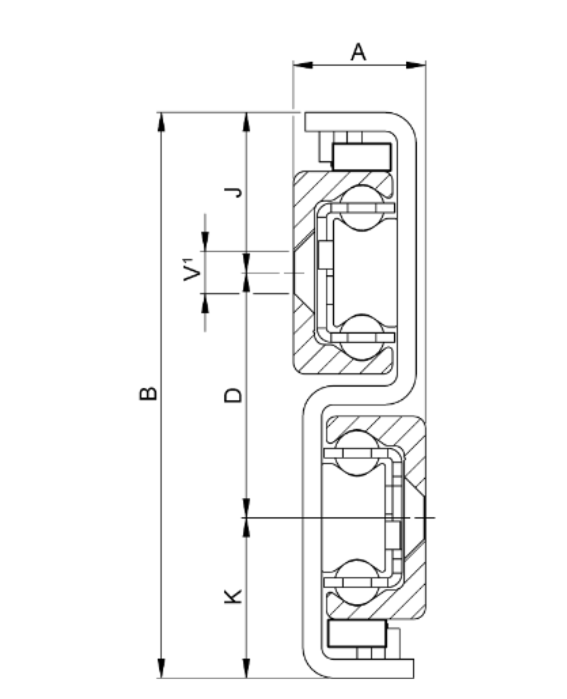

| Type | Size | A [mm] | B [mm] | K [mm] | D [mm] | J [mm] | V | Weight of One Guide Rail (kg/m) |
|---|---|---|---|---|---|---|---|---|
| S1 | 28 | 17 | 84 | 24.5 | 35 | 24.5 | M5 | 6.4 |
| 35 | 22.5 | 104 | 30.5 | 43 | 30.5 | M6 | 10.1 | |
| 43 | 28 | 120 | 34 | 52 | 34 | M8 | 14.6 | |
| 63 | 40 | 208 | 64 | 80 | 64 | M10 | 32.6 |
