S2-63

Technical specifications
Length to:
1970
Progress to:
1758
Weight up to:
64,2
Standard size:
63
Code:
S2
Ask a specialist a question
The manufacturer reserves the right to make design and specification changes.

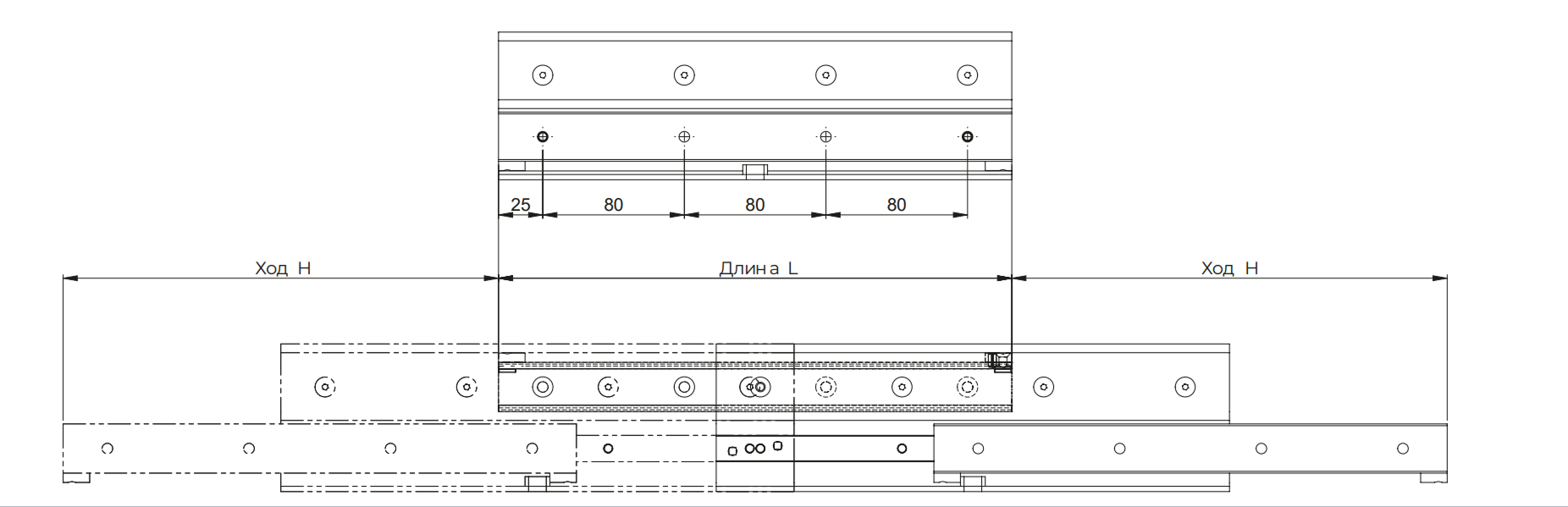

Dimensions S2-63
Type Size Length L [mm] Stroke H [mm] Load Capacity for
Pair of Rails C0rad [N]		 Number of
holes		 Weight of One
Guide Rail (kg)
S2 63 610 398 23716 6 / 8 19.9
690 478 24484 6 / 9 22.5
770 558 25434 8 / 10 25.1
850 638 26500 8 / 11 27.7
930 718 27646 10 / 12 30.3
1010 798 28848 10 / 13 32.9
1090 878 30092 12 / 14 35.5
1170 958 31368 12 / 15 38.1
1250 1038 32668 14 / 16 40.8
1330 1118 33988 14 / 17 43.4
1410 1198 35322 16 / 18 46.0
1490 1278 36670 16 / 19 48.6
1570 1358 38018 18 / 20 51.2
1650 1438 35538 18 / 21 53.8
1730 1518 33360 20 / 22 56.4
1810 1598 31436 20 / 23 59.0
1890 1678 29720 22 / 24 61.6
1970 1758 28182 22 / 25 64.2
Note:
The load capacity of the C₀Rad is indicated for a pair of telescopic rails. To calculate the load capacity for one guide rail, divide the value from the table by 2
Type Size A [mm] B [mm] K [mm] D [mm] J [mm] V Weight of One
Guide Rail
(kg/m)
S2 28 17 84 24.5 35 24.5 M5 6.4
35 22.5 104 30.5 43 30.5 M6 10.1
43 28 120 34 52 34 M8 14.6
63 40 208 64 80 64 M10 32.6
