T22
Technical specifications
Length to:
770
Progress to:
394
Weight up to:
1
Standard size:
22
Code:
T
The manufacturer reserves the right to make design and specification changes.
Note:
Remove the mounting screw to gain access to all mounting holes and ensure two-way running.
Mounting holes for countersunk head screws M4, according to DIN 7991.

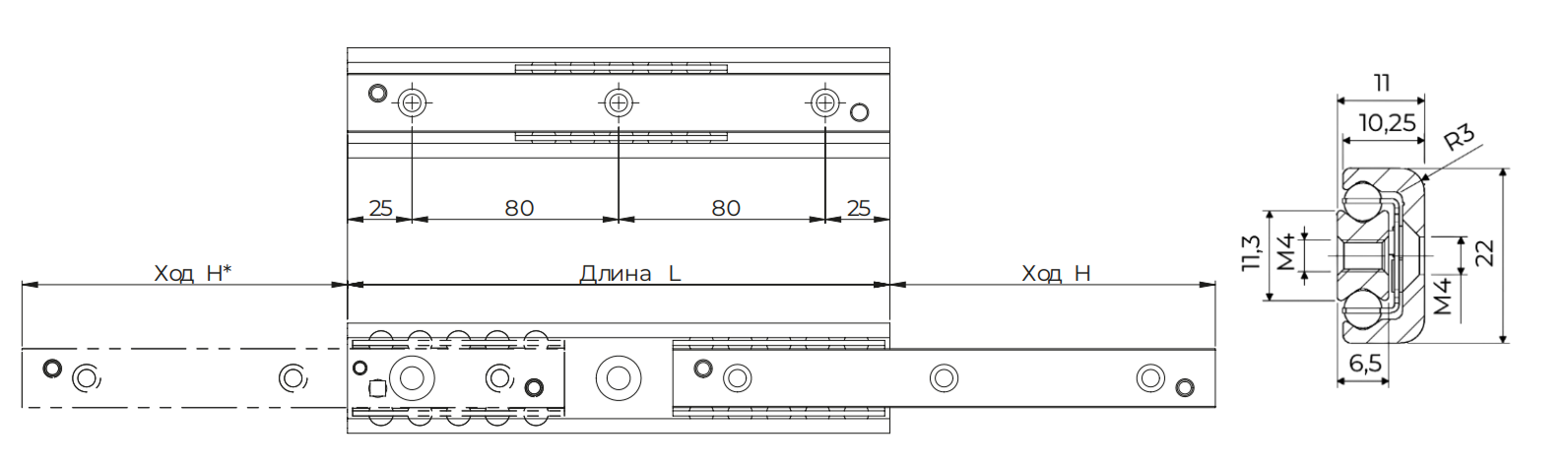

Dimensions T22
| Type | Size | Length L [mm] |
Stroke H [mm] |
Load Capacity and Moments for Pair of Guide Rails | Number of holes |
Weight of One Guide Rail (kg) |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| C0rad [N] | C0ax [N] | Mx* [Nm] | My [Nm] | Mz [Nm] | ||||||
| T | 22 | 130 | 76 | 626 | 438 | 5.7 | 20 | 30 | 2 | 0.2 |
| 210 | 111 | 1430 | 1002 | 10.7 | 72 | 102 | 3 | 0.3 | ||
| 290 | 154 | 1988 | 1392 | 14.9 | 138 | 198 | 4 | 0.4 | ||
| 370 | 196 | 2556 | 1790 | 19 | 226 | 324 | 5 | 0.5 | ||
| 450 | 231 | 3402 | 2380 | 24 | 360 | 516 | 6 | 0.6 | ||
| 530 | 274 | 3958 | 2770 | 28.2 | 496 | 710 | 7 | 0.7 | ||
| 610 | 316 | 4524 | 3168 | 32.3 | 654 | 934 | 8 | 0.8 | ||
| 690 | 351 | 5378 | 3764 | 37.3 | 872 | 1246 | 9 | 0.9 | ||
| 770 | 394 | 5934 | 4154 | 41.5 | 1078 | 1538 | 10 | 1 | ||
