T28
Technical specifications
Length to:
770
Progress to:
394
Weight up to:
1
Standard size:
28
Code:
T
The manufacturer reserves the right to make design and specification changes.
Note:
Remove the mounting screw to gain access to all mounting holes and ensure two-way running.
Mounting holes for countersunk head screws M4, according to DIN 7991.

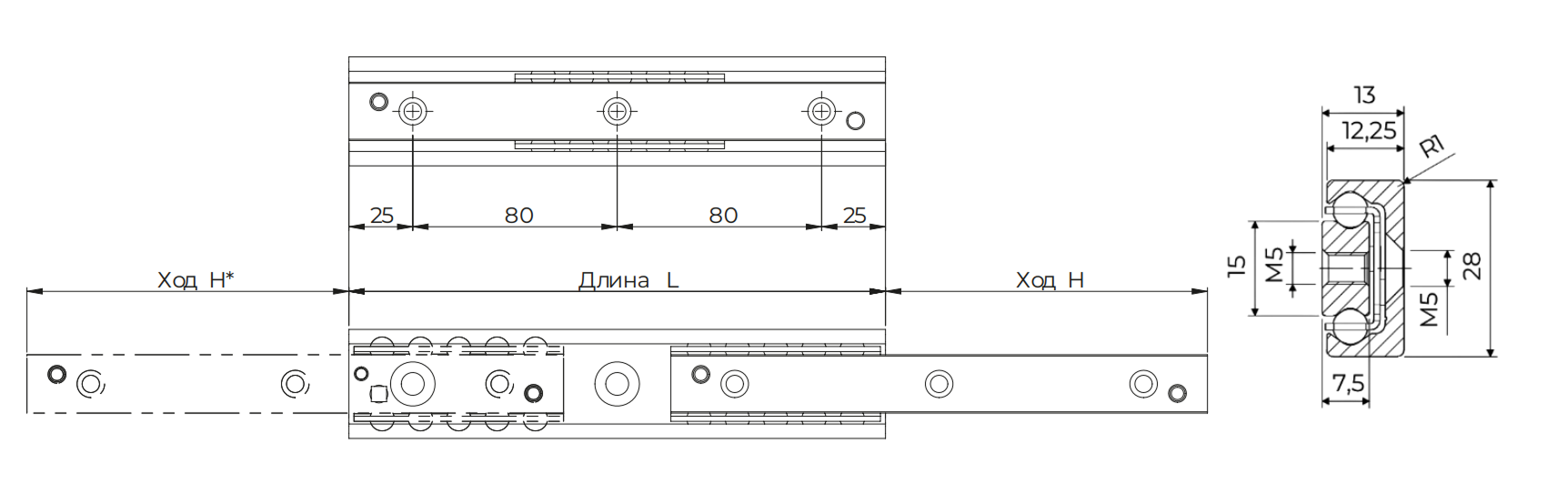

Dimensions T28
| Type | Size | Length L [mm] |
Stroke H [mm] |
Load Capacity and Moments for Pair of Guide Rails | Number of holes |
Weight of One Guide Rail (kg) |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| C0rad [N] | C0ax [N] | Mx* [Nm] | My [Nm] | Mz [Nm] | ||||||
| T | 28 | 130 | 74 | 1226 | 858 | 15.3 | 40 | 56 | 2 | 0.3 |
| 210 | 116 | 2232 | 1562 | 26.1 | 114 | 164 | 3 | 0.4 | ||
| 290 | 148 | 3868 | 2708 | 39.6 | 264 | 376 | 4 | 0.6 | ||
| 370 | 190 | 4890 | 3422 | 50.4 | 426 | 610 | 5 | 0.7 | ||
| 450 | 232 | 5910 | 4138 | 61.2 | 628 | 898 | 6 | 0.9 | ||
| 530 | 274 | 6932 | 4852 | 72 | 870 | 1242 | 7 | 1.1 | ||
| 610 | 316 | 7952 | 5566 | 82.8 | 1150 | 1642 | 8 | 1.2 | ||
| 690 | 358 | 8974 | 6282 | 93.6 | 1470 | 2100 | 9 | 1.4 | ||
| 770 | 400 | 9994 | 6996 | 104.4 | 1828 | 2612 | 10 | 1.6 | ||
| 850 | 433 | 11656 | 8160 | 117.9 | 2330 | 3330 | 11 | 1.7 | ||
| 930 | 475 | 12676 | 8872 | 128.7 | 2778 | 3968 | 12 | 1.9 | ||
| 1010 | 517 | 13696 | 9586 | 139.5 | 3262 | 4660 | 13 | 2 | ||
| 1090 | 559 | 14716 | 10300 | 150.3 | 3788 | 5410 | 14 | 2.2 | ||
| 1170 | 601 | 15736 | 11014 | 161.1 | 4350 | 6216 | 15 | 2.4 | ||
