T43
Technical specifications
Length to:
1970
Progress to:
1013
Weight up to:
10,3
Standard size:
43
Code:
T
The manufacturer reserves the right to make design and specification changes.
Note:
Remove the mounting screw to gain access to all mounting holes and ensure two-way running.
Mounting holes for countersunk head screws M4, according to DIN 7991.

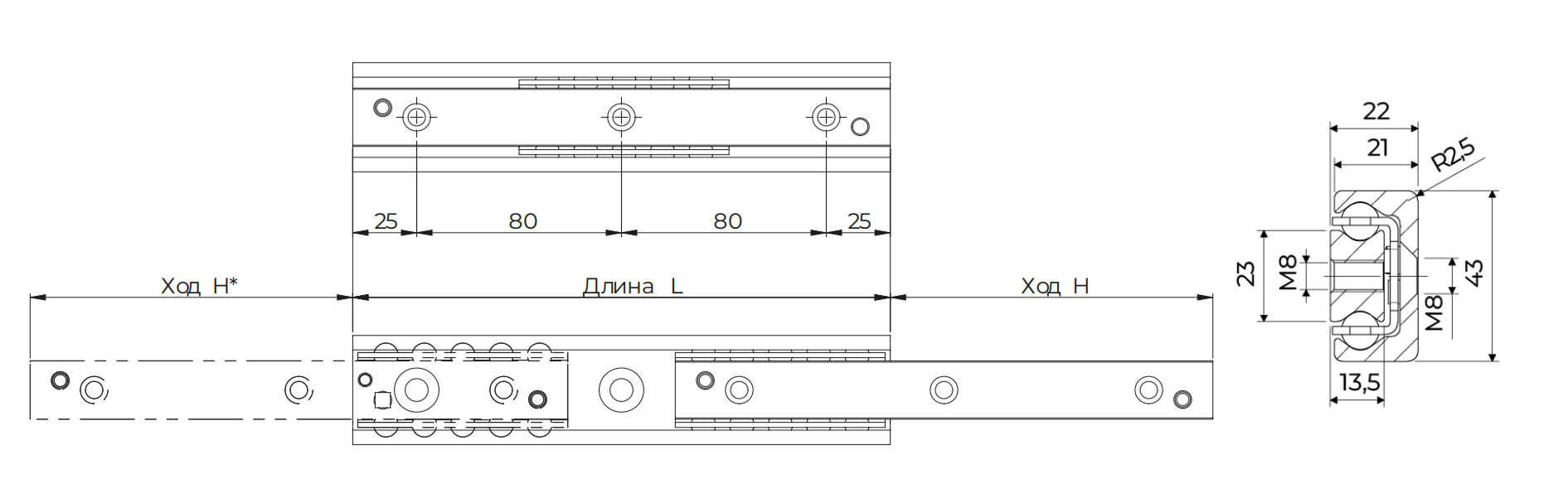

Dimensions T43
| Type | Size | Length L [mm] |
Stroke H [mm] |
Load Capacity and Moments for Pair of Guide Rails | Number of holes |
Weight of One Guide Rail (kg) |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| C0rad [N] | C0ax [N] | Mx* [Nm] | My [Nm] | Mz [Nm] | ||||||
| T | 43 | 210 | 123 | 3190 | 2234 | 60.6 | 168 | 240 | 3 | 1.1 |
| 290 | 158 | 5744 | 4020 | 93.8 | 402 | 576 | 4 | 1.5 | ||
| 370 | 208 | 6754 | 4728 | 115.9 | 616 | 880 | 5 | 1.9 | ||
| 450 | 243 | 9380 | 6566 | 149.2 | 1018 | 1456 | 6 | 2.4 | ||
| 530 | 278 | 12078 | 8454 | 182.4 | 1524 | 2176 | 7 | 2.8 | ||
| 610 | 313 | 14822 | 10376 | 215.6 | 2128 | 3042 | 8 | 3.2 | ||
| 690 | 363 | 15726 | 11008 | 237.8 | 2588 | 3698 | 9 | 3.6 | ||
| 770 | 398 | 18464 | 12926 | 271 | 3362 | 4804 | 10 | 4 | ||
| 850 | 433 | 21230 | 14862 | 304.2 | 4238 | 6054 | 11 | 4.5 | ||
| 930 | 483 | 22108 | 15476 | 326.4 | 4878 | 6968 | 12 | 4.9 | ||
| 1010 | 518 | 24868 | 17408 | 359.6 | 5922 | 8460 | 13 | 5.3 | ||
| 1090 | 568 | 25754 | 18028 | 381.8 | 6674 | 9534 | 14 | 5.7 | ||
| 1170 | 603 | 28508 | 19956 | 415 | 7886 | 11266 | 15 | 6.1 | ||
| 1250 | 638 | 31276 | 21894 | 448.2 | 9198 | 13142 | 16 | 6.6 | ||
| 1330 | 688 | 32150 | 22504 | 470.4 | 10130 | 14472 | 17 | 7 | ||
| 1410 | 723 | 34912 | 24438 | 503.6 | 11612 | 16590 | 18 | 7.4 | ||
| 1490 | 758 | 37690 | 26382 | 536.8 | 13196 | 18850 | 19 | 7.8 | ||
| 1570 | 793 | 40476 | 28334 | 570.1 | 14880 | 21256 | 20 | 8.2 | ||
| 1650 | 843 | 41322 | 28926 | 592.2 | 16058 | 22940 | 21 | 8.7 | ||
| 1730 | 878 | 44104 | 30872 | 625.5 | 17912 | 25588 | 22 | 9.1 | ||
| 1810 | 928 | 44958 | 31472 | 647.6 | 19202 | 27432 | 23 | 9.5 | ||
| 1890 | 963 | 47734 | 33414 | 680.8 | 21224 | 30320 | 24 | 9.9 | ||
| 1970 | 1013 | 48596 | 34018 | 703 | 22628 | 32324 | 25 | 10.3 | ||
