X22

Technical specifications
Length to:
770
Progress to:
788
Weight up to:
2
Standard size:
22
Code:
X
Ask a specialist a question
The manufacturer reserves the right to make design and specification changes.

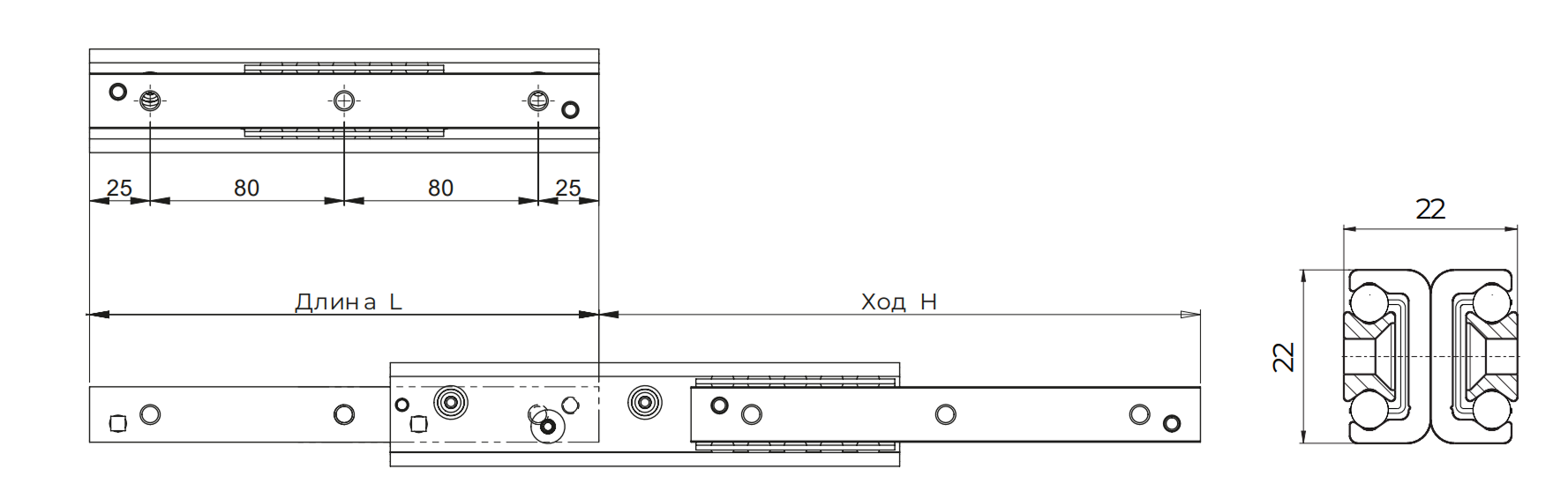

Dimensions X22
Type Size Length L [mm] Stroke H [mm] Load Capacity for Pair of Rails Number of
holes		 Weight of One
Guide Rail (kg)
C0rad [N] C0ax [N]
O 43 210 246 1210 848 3 2.2
290 316 2228 1560 4 3.0
370 416 2600 1820 5 3.9
450 486 2662 2558 6 4.7
530 556 2386 2386 7 5.6
610 626 2164 2164 8 6.4
690 726 1824 1824 9 7.2
770 796 1690 1690 10 8.1
850 866 1576 1576 11 8.9
930 966 1386 1386 12 9.8
1010 1036 1308 1308 13 10.6
1090 1106 1238 1238 14 11.4
1170 1206 1118 1118 15 12.3
1250 1276 1066 1066 16 13.1
1330 1376 976 976 17 14.0
1410 1446 938 938 18 14.8
1490 1516 900 900 19 15.6
1570 1586 868 868 20 16.5
1650 1686 806 806 21 17.3
1730 1756 780 780 22 18.2
1810 1856 730 730 23 19.0
1890 1926 708 708 24 19.8
1970 2026 668 668 25 20.7

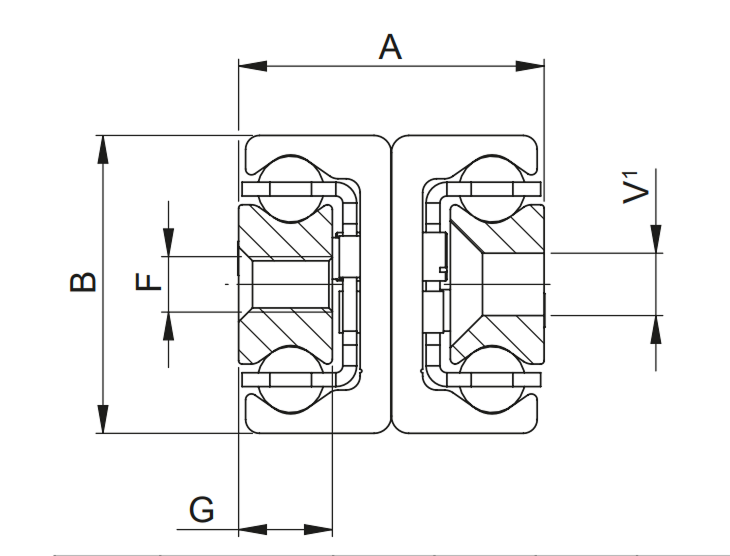

Type Size A [mm] B [mm] G [mm] F V Weight of One
Guide Rail
(kg/m)
X 22 22 22 6.5 M4 M4 2.64
28 26 28 7.5 M5 M5 4.04
35 34 35 10 M6 M6 6.1
43 44 43 13.5 M8 M8 10.5
63 58 63 10.5 M8 — 20.6
