X35

Technical specifications
Length to:
1490
Progress to:
1518
Weight up to:
9,1
Standard size:
35
Code:
X
Ask a specialist a question
The manufacturer reserves the right to make design and specification changes.

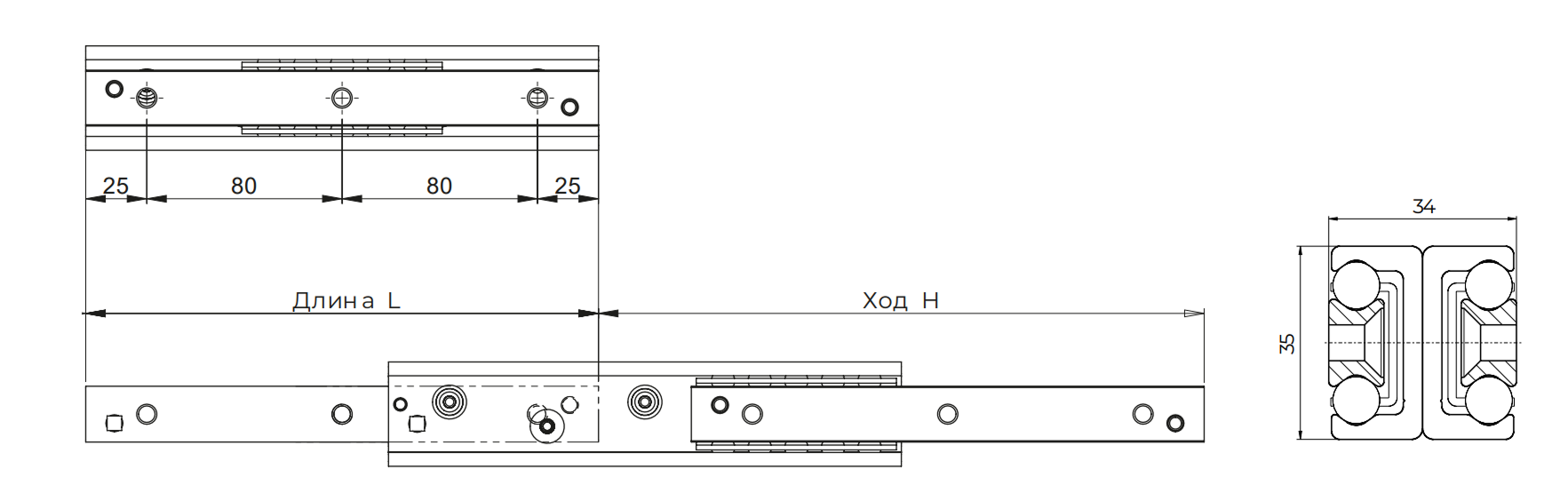

Dimensions X35
Type Size Length L
[mm]		 Stroke H
[mm]		 Load Capacity for
Pair of Rails C0rad [N]		 Load Capacity for
Pair of Rails C0ax [N]		 Number of
holes		 Weight of One
Guide Rail
(kg)
X 35 210 254 804 562 3 1.3
290 318 1600 1120 4 1.8
370 406 2050 1436 5 2.3
450 494 2500 1586 6 2.7
530 558 3370 1456 7 3.2
610 646 3816 1252 8 3.7
690 734 3378 1096 9 4.2
770 798 3182 1032 10 4.7
850 886 2850 926 11 5.2
930 974 2582 838 12 5.7
1010 1038 2466 800 13 6.2
1090 1126 2262 734 14 6.6
1170 1214 2090 678 15 7.1
1250 1278 2012 654 16 7.6
1330 1366 1874 608 17 8.1
1410 1454 1754 570 18 8.6
1490 1518 1700 552 19 9.1
Type Size A [mm] B [mm] G [mm] F V Weight of One
Guide Rail
(kg/m)
X 22 22 22 6.5 M4 M4 2.64
28 26 28 7.5 M5 M5 4.04
35 34 35 10 M6 M6 6.1
43 44 43 13.5 M8 M8 10.5
63 58 63 10.5 M8 — 20.6
