X63

Technical specifications
Length to:
1970
Progress to:
2026
Weight up to:
40,6
Standard size:
63
Code:
X
Ask a specialist a question
The manufacturer reserves the right to make design and specification changes.

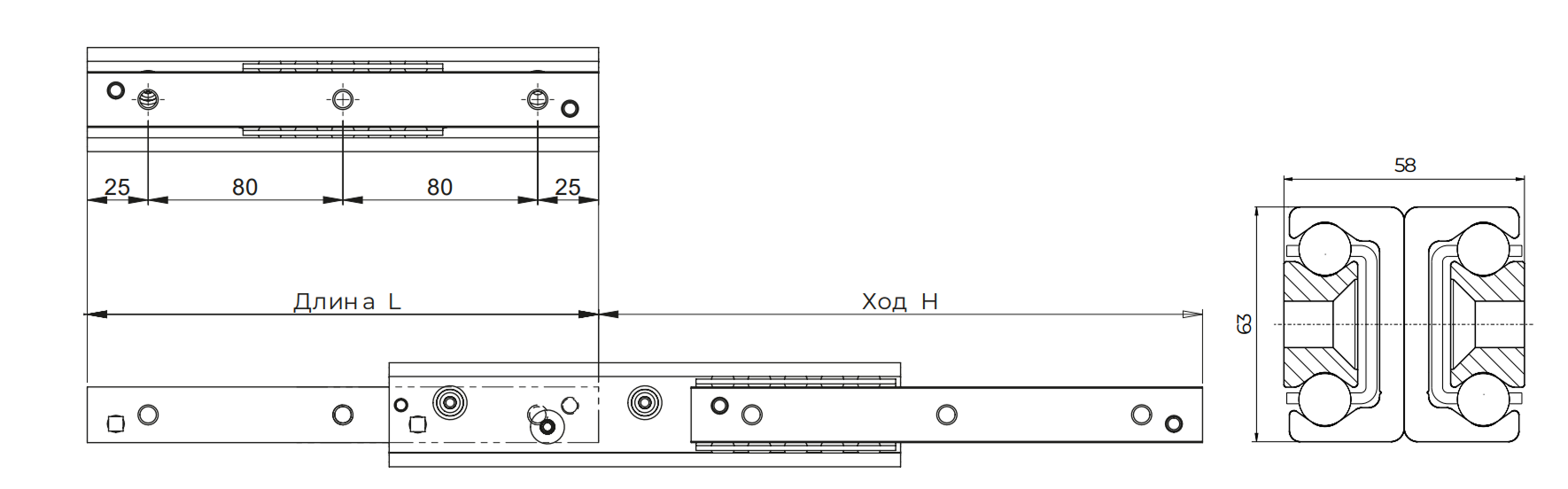

Dimensions X63
Type Size Length L
[mm]		 Stroke H
[mm]		 Load Capacity for
Pair of Rails C0rad [N]		 Load Capacity for
Pair of Rails C0ax [N]		 Number of
holes		 Weight of One
Guide Rail
(kg)
X 63 610 666 8180 5726 8 12.6
690 746 9718 6124 9 14.2
770 826 11270 5568 10 15.9
850 906 12830 5106 11 17.5
930 986 14396 4714 12 19.2
1010 1066 13770 4378 13 20.8
1090 1146 12854 4086 14 22.5
1170 1226 12052 3832 15 24.1
1250 1306 11344 3606 16 25.8
1330 1386 10714 3406 17 27.4
1410 1466 10152 3228 18 29.0
1490 1546 9644 3066 19 30.7
1570 1626 9186 2920 20 32.3
1650 1706 8768 2788 21 34.0
1730 1786 8388 2666 22 35.6
1810 1866 8038 2556 23 37.3
1890 1946 7718 2454 24 38.9
1970 2026 7420 2360 25 40.6
Type Size A [mm] B [mm] G [mm] F V Weight of One
Guide Rail
(kg/m)
X 22 22 22 6.5 M4 M4 2.64
28 26 28 7.5 M5 M5 4.04
35 34 35 10 M6 M6 6.1
43 44 43 13.5 M8 M8 10.5
63 58 63 10.5 M8 — 20.6
